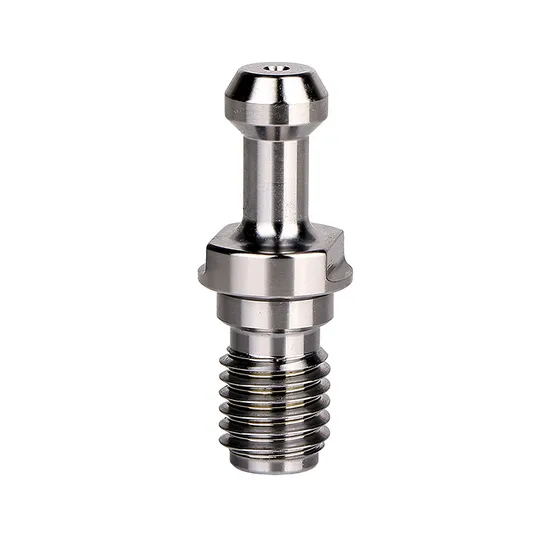

Durable Pull Stud Made of High Quality Alloy Steel for CNC Tool Holders

Overview
Product Description
Specification
Packaging & Shipping

Overview

Basic Info.

Model NO.	BT30-45
Logo Printing	Without Logo Printing
Size	Bt30-45
Customized	Customized
Type	Cartridge
Material	Metal
Certification	ISO 9001:2008
Makings	20crmnti
Standard	OEM/ODM
Application	Metal Cutting Machine, Metal Processing Center
Degrees	45 Degrees
Transport Package	Plastic Box
Specification	BT30-45
Trademark	DEQIEER
Origin	Shanghai
HS Code	8205100000
Production Capacity	100000/Year

Packaging & Delivery

Package Size7.00cm * 0.45cm * 5.00cm Package Gross Weight0.500kg

Product Description

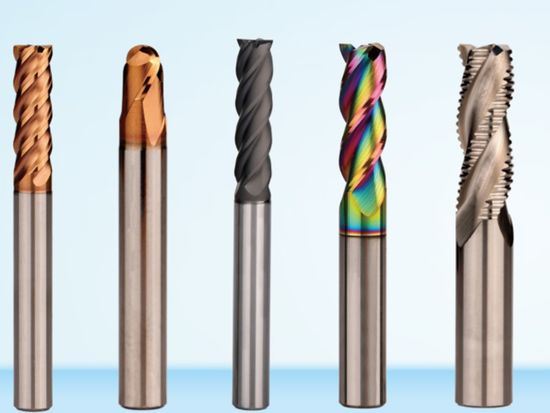

Coating name	Coating composition	Coating hardness	Coating thicdness	Heat resistance temperature	coefficient of friction	Coating Color	application tool
Glit	Ta-c	7000-8000	0.2-0.5µm	100-200	0.08-0.15	Rainbow-colore	N
titanium nitride	TiN	1700-2100	1-5µm	450-500	0.4	Golden	P/M
TS	CrAlSiN	3000-3400	1-5µm	450-500	0.3-0.5	Dark Gray	K/S
copper (bronze)	TiSiN	2800-3300	1-5µm	450-500	0.35-0.45	Bronze	H
HT	AlTiSi+N	3700	2-4µm	1300	0.4	Bronze	H

Specification

Five-axis grinding machine grinding tool process 1. Clamping The bar blank is loaded into the hydraulic tool shank and locked to ensure that the bar fits the datum surface of the barrel clamp.
2.Measurement of runout Probe to detect the radial/axial runout of the bar (≤0.003mm), and automatically compensate for overshooting.
3. Change the grinding wheel set Switch the rough grinding wheel.
4.Rough grinding Grind the groove with parallel grinding wheel, cooling oil flushing to remove the residue.
5. Semi-fine grinding Grind the first and second rear angles with angle and fillet grinding wheels, and do end tooth grinding.
6. Fine grinding Use bowl-shaped grinding wheel to grind the cutting edge and end teeth.
7. End Inspection All dimensions of the tool are measured on-line by laser tool measurements. (R-value of the cutting edge/front angle/back angle/length/rounding).

ER toolholderHSK toolholderCNC precision toolholder

HSK40E precision toolholderHSK63A precision toolholder

BT40 Hydraulic ToolholdersBT30 40 50 toolholderCompany ProfileEstablished in 2011, Shanghai Wanlijia Tools Co., Ltd. is a professional enterprise integrating sales and technical service of metal cutting tools. Our company provides one-stop shopping: standard products include toolholders, milling cutters, reamers, taps, drills, inserts and other hardware tools. And we provide OEM/ODM non-standard customized service for customers.

Packaging & Shipping

FAQQ1.Are you a manufacturer? Do you have a factory?
A: We are trading company, 10 kilometers away from Shanghai Hongqiao Airport, and also have our own production factory. Q2: When will I receive a reply?
A: We usually reply within 8 hours after we receive your inquiry. If you need to know the price urgently, please call us for priority expediting.Q3. What are your payment terms?
A: T/T 30% as deposit and 70% before delivery. We will show you photos of the product and packaging before you make the remaining payment.Q4. What are your delivery terms?
A: EXW, FOB, CFR, CIF, ETCQ5. What is your delivery time?
A: Generally, it takes 10-15 days after receiving your prepayment. The exact delivery time depends on the project and order quantity.Q6. Do you provide samples?
A: Yes, we can provide free samples from our stock and the shipping cost is paid by you. Customized tools will be quoted the best sample price after consultation and communication.
