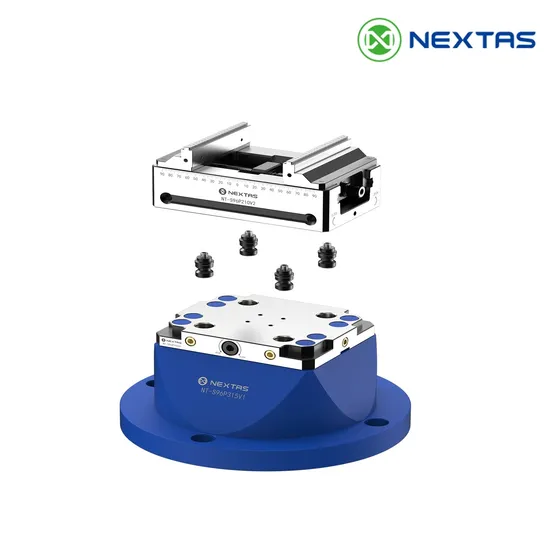

CNC Machinery Tool Accessories for Lathe Machining
Description
- Overview
- Product Description
- Detailed Photos
- Company Profile
- Our Advantages
- Certifications
- Packaging & Shipping
- FAQ
Basic Info.
| Model NO. | NT-S52P315V1 |
| Logo Printing | with Logo Printing |
| Size | Middle |
| Customized | Non-Customized |
| Type | Positioner & Fxiture |
| Material | Stainless Steel |
| Certification | ISO 9001:2008, ISO 9001:2000, CE, ISO 14001 ISO45001 |
| Power | Manual |
| Structure | Solid |
| Transport Package | EPE Foam & Packing Box & Wooden Box |
| Specification | 290**290*150mm |
| Trademark | Nextas |
| Origin | Zhuhai |
| HS Code | 8479909090 |
| Production Capacity | 5000 |
Product Description
Quick Change Pallet for CNC Milling Power Chuck with Raised BaseApplicable Field: Suitable for all kinds of pnuematic chuck clamping positioning interface use.
Quick Change Datum Plate Application Cases
NEXTAS industrial quick change fixture can be applied to various fields of industry to replace the traditional fix method, simplify industrial manufacturing, greatly improve work efficiency, and release the maximum value of customers' production equipment. Q: Customization Service?
A: Yes, we have a professional R&D team ready to provide you with customized services.
Q: OEM logo Service?
A: Yes, we supply service of laser your logo in our products.
Q: Delivery Time?
A: For standard products, we can deliver in 2-5 days after received the patment;
For customized products, we need about 3-7 days to propose a solution and 7-14 days to manufacture.
Q: How can I get a most favorable price?
A: Give Sandy a "Hi", then she will offer you the best price!
Product Description
| Model NO, | NT-S52P315V1 | Type | Datum Pallet System |
| Customized | NO | Weight(kg) | 16.6 |
| Material | Martensitic Stainless Steel | Finished Size(mm) | 290*290*150 |
| Precision | <0.005mm | Clamping force(KN) | 20KN |
| Power | Manual | Set up Distance | / |
| Trademark | Nextas | Connection | / |
| Certification | ISO 9001/ISO 24001/ISO 45001 | Origin | Zhuhai, Guangdong |
| Transport Package | EPE & Carton & Wooden Box | MOQ | 1PCS |
| Production Capacity | 5000PCS/Month | HS code | 8479909090 |
| Repeatable positioning accuracy <0.005mm | |||
Detailed Photos
| 52mm/96mm industry-standard modular design, lightweight and versitile, expandable fleaxibility to cope with parts use. | ||||||||||
| Mechanical clamping froce structure with 20,000N clamping force ensures machining stability. | ||||||||||
| Fixture repeatitive positioning accuracy <5um, can be set to zero center of the mechanical coordinates, realizing the adjustment of the machine "start without zero point" efficient operation. | ||||||||||
| The chuck indexing 4*90° allows for the flexible use of product corner modules. |
Company Profile
NEXTAS Co., Ltd. was established in March 2009,dedicated to plowing industrial quick-change fixture technology for 15 years, 400 employees, including R&D technical personnel accounted for 55%, R&D production base of 43,600 squaremeters, for high-quality, batch demand for products to provide a strong guarantee. NEXTAS continues to introduce international advanced technology research and development personnel, for industrial manufacturing in various fields of industry pain points to start solving the problem, the product super-generatlon R&D technology innovation, R&D capabilities and application of leading domestic technology, Nextas industrial quick-exchange technology specificaly for enterprises to provide standardized cost reductlon and efficiency of the overall solution and one-stop service for intelligent manufacturing.Mission:Provide competitlve intellgent manufacturing solutions and create value for customers through continuous innovation.Vision:Innovation with Smart SolutionsValues:Win-win, Innovation, Cooperation, integrity, Eficiency, Commitment.
Our Advantages
Profession & Innovation
NEXTAS has a professional R&D design team who have 15 years experience in precision manufacturing processes, they can provide a whole set of quick change fixture system customazation design scheme base on customer's process needs. NEXTAS can provide one-stop technical solutions and technical support such as process, fixture, and programming for customers' processing difficulties on a one-to-one basis. NEXTAS has a professional technology team who can offer matching application and professional after-sales service, to allow customers choose us without any worries.
